Antigravity A1 Infinity Bundle

A1 DRONE

• Takeoff Weight: 291 g (10.26 oz) (with High-Capacity Battery)
• Dimensions:
  • Folded: 141.3 × 96.2 × 81.4 mm (5.56 × 3.79 × 3.20 in) (L×W×H)
  • Unfolded (propellers extended): 308.6 × 382.3 × 89.2 mm (12.15 × 15.05 × 3.51 in) (L×W×H)
• Max Flight Time: 39 minutes (with High-Capacity Battery)
  • *Tested in a controlled windless environment at 25°C (77°F), 5.2K30fps (video recording disabled), with the drone flying forward at 6 m/s (13.4 mph) at an altitude below 50 m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions.
• Max Flight Distance (per charge): 23 km (14.3 mi) (with High-Capacity Battery)
  • ‌‌*Tested in a controlled windless environment at 25°C (77°F), 5.2K30fps (video recording disabled), with the drone flying forward at 12 m/s (26.8 mph) at an altitude below 50 m (164 ft) until low-battery auto-landing was triggered. Flight time may vary under different conditions.
• Max Ascent/Descent Speed:
  • 8 m/s (17.9 mph) (S Mode)
  • 6 m/s (13.4 mph) (N Mode)
  • 3 m/s (6.7 mph) (C Mode)
• Max Horizontal Speed (at sea level, no wind):
  • 16 m/s (35.8 mph) (S Mode)
  • 12 m/s (26.8 mph) (N Mode)
  • 3 m/s (6.7 mph) (C Mode)
• Max Wind Speed Resistance: 10.7 m/s (24 mph) (Level 5)
• Max Takeoff Altitude: 3,000 m (9,842 ft) (with High-Capacity Battery)
• Global Navigation Satellite System: GPS + Galileo + Beidou
• Hovering Accuracy Range: Vertical/ Horizontal: ±0.1 m (0.33 ft) (with vision positioning) | ±0.5 m (1.64 ft) (with GNSS positioning)
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Internal Storage: 20GB
• Internal File System: exFAT
• Supported Storage: microSD (up to 1TB)

CAMERA

• Image Sensor: 1/1.28-inch
• Lens Aperture: F2.2
• Video Resolution:
  • 8K: 7680×3840@30/25/24fps
  • 5.2K: 5248×2624@60/50/30/25/24fps
  • 4K: 3840×1920@100fps
  • 4K Slow Motion: 3840×1920@30/25/24fps
• Photo Resolution:
  • 55 MP (10496×5248)
  • 14 MP (5248×2624)
• Video Format: INSV (Exported through Antigravity App or Antigravity Studio)
• Photo Format: INSP (Exported through Antigravity App or Antigravity Studio), DNG
• Video Modes: Standard Video, Slow Motion
• Photo Modes: Standard Photo, HDR, Burst, AEB
• Video Encoding Format: H.264, H.265
• Max Video Bitrate: 170Mbps
• ISO Range: 100-6400
• Shutter Speed:
  • 14MP Photo: 1/8000-1/2s
  • 55MP Photo: 1/8000-1/20s

SENSING

• Sensing Type: Forward and downward vision sensors, complemented by bottom infrared sensors.
• Forward:
  • Measurement Range: 0.5–18 m (1.6–59.1 ft)
  • Effective Sensing Speed: Flight Speed ≤ 12 m/s (26.8 mph)
  • FOV: Horizontal 93°, Vertical 104°
• Downward:
  • Measurement Range: 0.3–7.5 m (1.0–24.6 ft)
  • Effective Sensing Speed: Flight Speed ≤ 6 m/s (13.4 mph)
  • FOV: Front and Back 107°, Left and Right 90°
• Operating Environment:
  • Forward: Surfaces with discernible patterns and adequate lighting (lux > 15)
  • Downward: Surfaces with discernible patterns, diffuse reflectivity > 20% (e.g. cement pavement, stout trees), and adequate lighting (lux > 15)

VIDEO TRANSMISSION

• Video Transmission System: OmniLink 360
• Live View Quality: 2K@30fps
• Operating Frequency:
  • 2.400 GHz-2.4835 GHz
  • 5.150 GHz-5.250 GHz
  • 5.725 GHz-5.850 GHz
• Transmitter Power (EIRP):
  • 2.4 GHz: < 30 dBm (FCC) | < 20 dBm (CE/SRRC/MIC)
  • 5.1 GHz: < 23 dBm (CE) | < 21 dBm (FCC)
  • 5.8 GHz: < 30 dBm (FCC/SRRC) | < 14 dBm (CE)
• Max Transmission Distance (open, free of interference):
  • Strong Interference (urban/industrial): approx. 1–4 km (0.6–2.5 mi)
  • Medium Interference (suburban): approx. 3–6 km (1.9–3.7 mi)
  • Low Interference (seaside/suburb): approx. 5–10 km (3.1–6.2 mi)
  • *Tested under FCC standard in open environments with typical interference. Used for reference purposes only.
• Max Transmission Distance (obstructed, with interference):
  • Low Interference/Buildings: approx. 0.1–0.5 km (0.06–0.31 mi)
  • Low Interference/Trees: approx. 0.5–2 km (0.31–1.24 mi)
  • *Tested under FCC standard in obstructed environments with typical low interference. Used for reference purposes only and provides no guarantee for actual transmission distance.
• Max Transmission Rate: 30Mbps
• Average Latency: Approx. 150 ms
• Antenna: 4 antennas, 2T2R
• Wi-Fi: 802.11 a/b/g/n/ac

FLIGHT BATTERY

• Weight: < 108.6 g (3.83 oz) (High-Capacity Battery)
• Capacity: 4345mAh (High-Capacity Battery)
• Energy: 31.1Wh (High-Capacity Battery)
• Nominal Voltage: 7.16V
• Charging Limit Voltage: 8.6V
• Battery Type: Li-ion 2S
• Charging Temperature: 5°C to 45°C

CHARGING HUB

• Weight: 118.5 g (4.18 oz)
• USB-C Input:
  • PPS: 5–10V 5A
  • PD: 5V 3A, 9V 5A, 12V 5A, 15V 4A
• Output:
  • PD 3.0: 30W
  • 15V 2A, 12V 2.5A, 9V 3A, 5V 3A
• Compatibility: Antigravity A1 Flight Battery, Antigravity A1 High-Capacity Flight Battery
• Recommended Charger: Antigravity 65W GaN Fast Charger

VISION GOGGLES

• Weight: 340.4 g (12.0 oz) (spacer, mask and band included)
• Dimensions:
  • Antenna Folded: 174×106×92 mm (6.85 × 4.17 × 3.62 in) (L×W×H）
  • Antenna Unfolded: 200×106×115 mm (7.87 × 4.17 × 4.53 in) (L×W×H)
• Internal Screen Size (single screen): 1.03-inch Micro-OLED with TÜV Rheinland Low Blue Light
• Internal Display Resolution (single screen): 2560×2560
• Refresh Rate: 72Hz
• Optical Engine: Pancake Optical Display System
• Interpupillary Distance Range: 59-72 mm (2.32–2.83 in)
• Diopter Adjustment Range: -5.0 D to +2.0 D
• FOV (single screen):
  • DFOV:90°
  • HFOV/VFOV:65°
• Video Recording Format: INSV
• Video Recording Resolution: 1600×1600
• Screen Recording Frame Rate: 30fps
• Supported Video and Audio Playback Formats: MP4, MOV, JPG, PNG, INSP, INSV
• Real View FOV: DFOV: 115° | HFOV: 93° | VFOV: 93°
• Real View Resolution: 1088×1088
• Real View Frame Rate: 50fps
• Operating Temperature: -10˚C to 40˚C (14°F to 104°F)
• Power Input: Supports only Vision goggles dedicated battery; requires USB-C to DC cable.
• Internal Storage: Approx.30GB
• Internal File System: exFAT
• Supported Storage: microSD (up to 1TB)

GRIP MOTION CONTROLLER

• Dimensions: 143 × 45 × 72.5 mm (5.63 × 1.77 × 2.85 in) (L×W×H)
• Weight: 124.3 ± 0.3 g (4.38 ± 0.01 oz)
• Operating Frequency: 2.4000-2.4835 GHz
• Transmitter Power (EIRP): < 10 dBm
• Max Transmission Distance (open, free of interference): < 10 m (32.8 ft)
• Operating Temperature: -10°C to 40°C (14°F to 104°F)
• Battery Capacity: 2300mAh

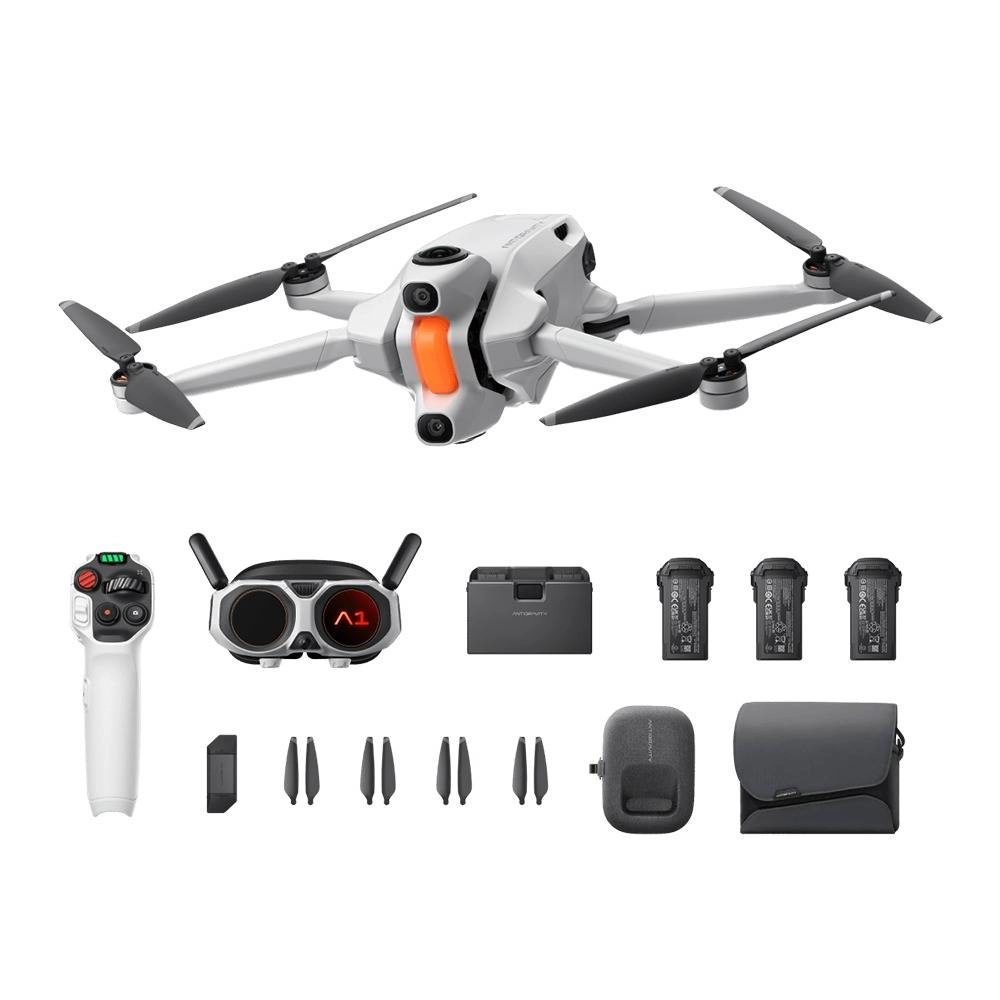

• 1x Antigravity A1 Infinity Bundle
  • 1x A1 Drone
  • 1x Antigravity Vision Goggles
  • 1x Grip Motion Controller
  • 3x Antigravity A1 High-Capacity Flight Battery
  • 8x Antigravity A1 Propellers
  • 1x Charging Hub
  • 1x Quick Reader
  • 1x Antigravity A1 Sling Bag
  • 1x A1 Drone Carry Case
